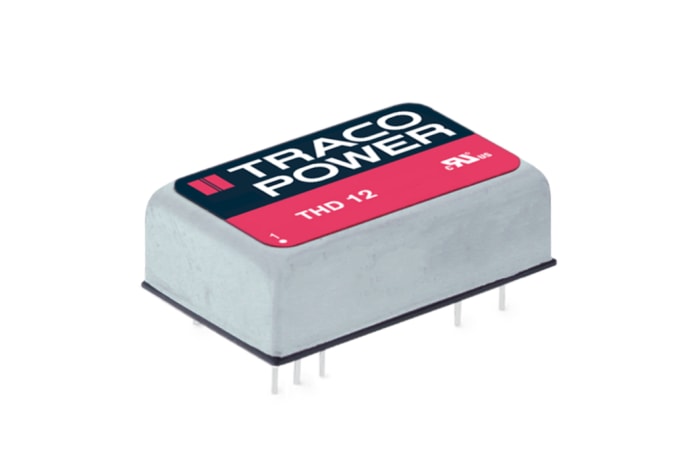

TRACOPOWER THD 12WI DC-DC Converter, ±12V dc/ ±500mA Output, 9 → 36 V dc Input, 12W, Through Hole, +85°C Max
Documentos Técnicos
Especificações
Brand
TRACOPOWEROutput Voltage
±12V dc
Input Voltage Range
9 → 36 V dc
Power Rating
12W
Input Voltage Nominal
24 V dc
Output Current
±500mA
Mounting Type
Through Hole
Isolated
Yes
Number of Outputs
2
Package
DIP 24
Isolation Voltage
1.5kV dc
Length
31.8mm
Depth
10.2mm
Width
20.3mm
Series
THD 12WI
Load Regulation
±1%
Maximum Temperature
+85°C
Minimum Temperature
-40°C
Efficiency
85%
País de Origem
Taiwan, Province Of China
Detalhes do produto
Traco 12W Output Regulated Isolated DC-DC Converter - THD12WI Series
The Traco Power THD 12WI series is a range of high performance, isolated, 12 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The THD 12WI series feature Built-in filters for both input and output minimizing the need of external filtering. These DC-DC converters offer overload and overvoltage protection, as well as remote On/Off. The THD 12WI DC-DC power supplies have a full SMD-design with exclusive use of ceramic capacitors, which guarantees high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB.
Approvals
UL/cUL
Standards
UL 60950-1, IEC/EN 60950-1
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
R$ 1.000,43
Each (Sem VAT)
1
R$ 1.000,43
Each (Sem VAT)
1
Comprar em grandes quantidades
| Quantidade | Preço unitário |
|---|---|
| 1 - 4 | R$ 1.000,43 |
| 5 - 9 | R$ 985,37 |
| 10 - 24 | R$ 969,38 |
| 25 - 49 | R$ 942,06 |
| 50+ | R$ 913,25 |
