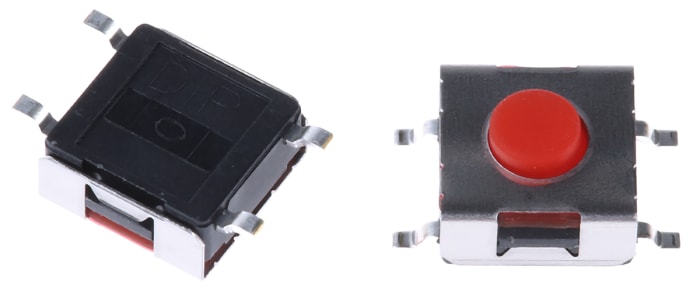

APEM Red Button Tactile Switch 50 mA @ 12 V dc
Documentos Técnicos
Especificações
Brand
ApemTerminal Type
Surface Mount
Switch Operation
Momentary
Actuator Colour
Red
Actuator Type
Button
Length
6.2mm
Dimensions
6.2 x 6.3 x 5.2mm
Illuminated
No
Contact Current Rating
50 mA @ 12 V dc
Height
5.2mm
Operating Force
1.77 N
Voltage Rating
12V dc
Contact Material
Silver Plated Phosphor Bronze
Minimum Operating Temperature
-25°C
Operating Temperature Range
-25 °C → +70°C
Maximum Operating Temperature
+70°C
País de Origem
China
Detalhes do produto
Commercial Tactile Switches
Tactile
R$ 230,00
R$ 23,00 Each (In a Pack of 10) (Sem VAT)
10
R$ 230,00
R$ 23,00 Each (In a Pack of 10) (Sem VAT)
10
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
| Quantidade | Preço unitário | Per Pacote |
|---|---|---|
| 10 - 40 | R$ 23,00 | R$ 230,00 |
| 50 - 240 | R$ 21,43 | R$ 214,30 |
| 250 - 490 | R$ 19,43 | R$ 194,30 |
| 500 - 990 | R$ 18,02 | R$ 180,20 |
| 1000+ | R$ 17,06 | R$ 170,60 |
