Omron Fibre Amplifier, NPN Output IO-Link, 1.08 W, IP20, 10 → 30 V dc
Documentos Técnicos
Especificações
Brand
OmronOutput Type
NPN
Terminal Type
Pre-Wired
Response Time
1 (Standard Mode) ms, 16 (Giga-Power Mode) ms, 250 (High Speed Mode) μs, 50 (Super High Speed Mode) μs
Light Source
White LED
Electrical Connection
Pre-Wired Cable
Communication Protocol
IO-LINK
Power Consumption
1.08 W
IP Rating
IP20
Housing Material
PC
Supply Voltage
10 → 30 V dc
Length
104.8mm
Interface
IO-Link
Width
33.5mm
Maximum Operating Temperature
+40 (30 Units)°C
Minimum Operating Temperature
-25 (30 Units)°C
Standards Met
CE, IEC 60947-1, UL Certified
Dimensions
104.8 x 33.5 x 10 mm
Mounting Type
DIN Rail
Depth
10mm
Detalhes do produto

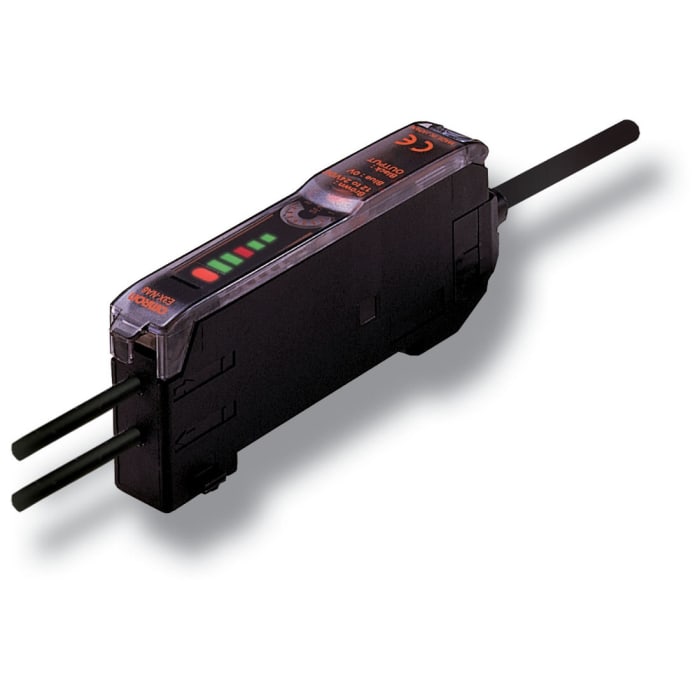

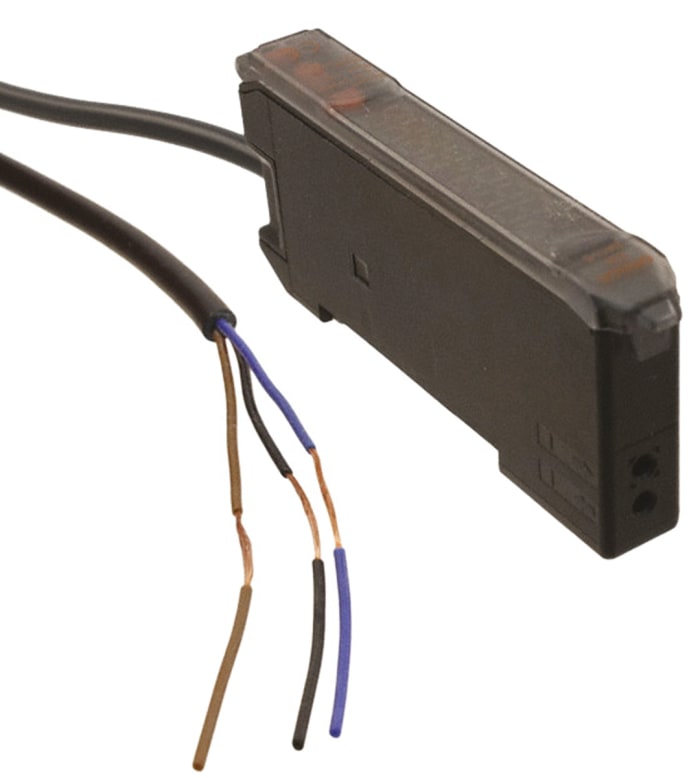

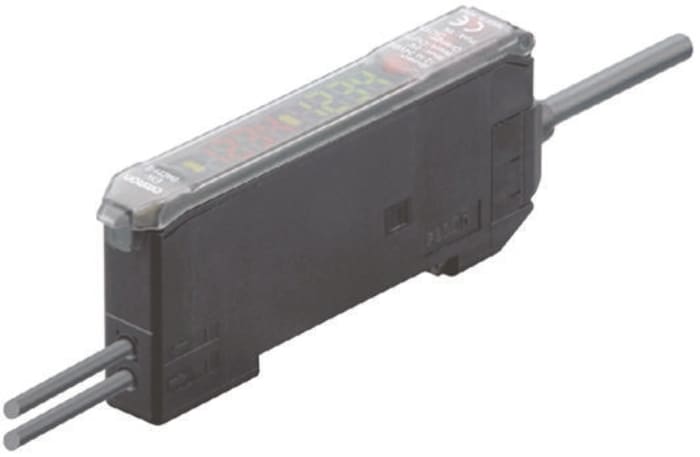

E3NX-CA Series Colour Mark Fibre Amplifiers
Omron E3NX-CA series colour mark fibre amplifier units are advanced performance sensors for detection of subtle colour differences. The sensing distance and minimum sensing object specifications of the sensors have been improved allowing easy detection in a wide variety of applications. The white LED optic system increases the light intensity, and the low-noise circuit in the Smart Fibre Amplifier Unit provides a reliable detection capability.
R$ 6.064,92
R$ 6.064,92 Each (Sem VAT)
1
R$ 6.064,92
R$ 6.064,92 Each (Sem VAT)
1
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
