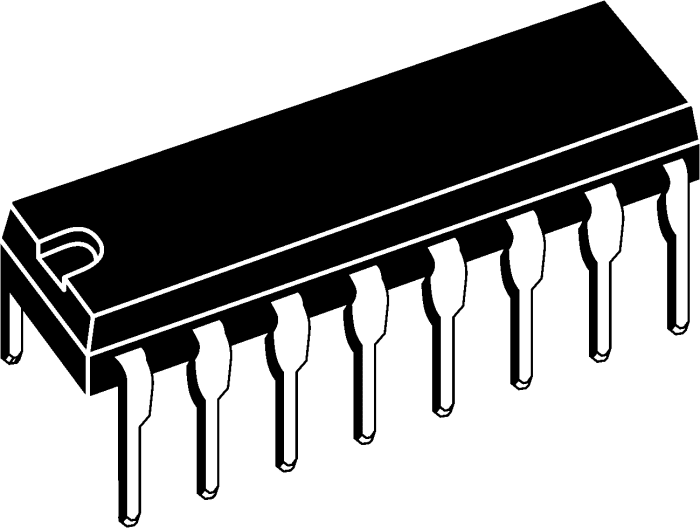

Texas Instruments ULN2003AN, 7-element NPN Darlington Transistor Array, 500 mA 50 V, 16-Pin PDIP
Documentos Técnicos
Especificações
Brand
Texas InstrumentsTransistor Type
NPN
Maximum Continuous Collector Current
500 mA
Maximum Collector Emitter Voltage
50 V
Maximum Emitter Base Voltage
50 V
Package Type
PDIP
Mounting Type
Through Hole
Pin Count
16
Transistor Configuration
Common Emitter
Number of Elements per Chip
7
Maximum Collector Emitter Saturation Voltage
1.6 V
Height
4.57mm
Dimensions
19.3 x 6.35 x 4.57mm
Maximum Operating Temperature
+70 °C
Length
19.3mm
Width
6.35mm
Minimum Operating Temperature
-20 °C
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 13,84
R$ 13,84 Each (Sem VAT)
Padrão
1
R$ 13,84
R$ 13,84 Each (Sem VAT)
Padrão
1
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
| Quantidade | Preço unitário |
|---|---|
| 1 - 9 | R$ 13,84 |
| 10 - 24 | R$ 13,70 |
| 25 - 49 | R$ 13,24 |
| 50+ | R$ 12,74 |
