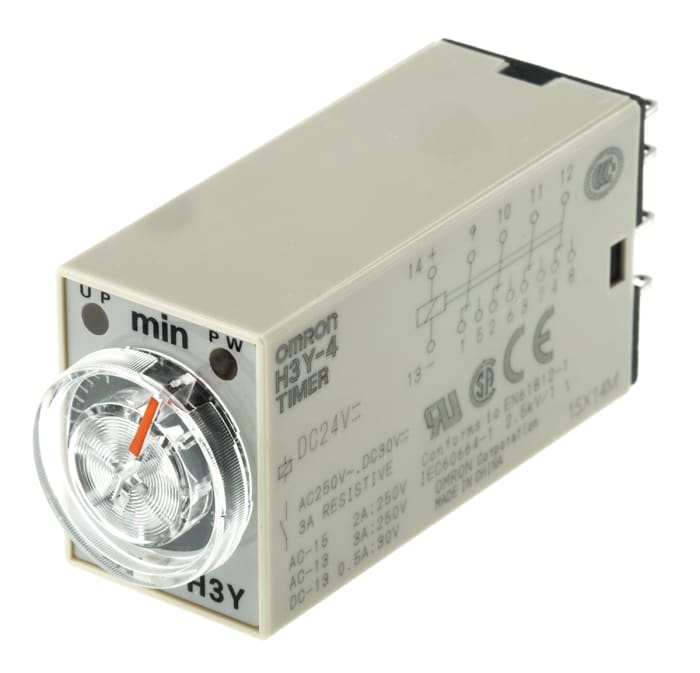

Omron H3Y-4 Series DIN Rail, Surface Mount Timer Relay, 24V dc, 4-Contact, 0.2 → 5min, 1-Function, 4PDT

Nº de Estoque RS: 340-437Marca: OmronPart Number: H3Y-4 DC24 5M
brand-logo
Ver tudo em Timer Relays

Documentos Técnicos

Especificações

Brand

Omron

Supply Voltage

24V dc

Mounting Type

DIN Rail, Surface Mount

Mode of Operation

ON Delay

Time Range

0.2 → 5min

Number of Contacts

4

Number of Timer Functions

Single

Contact Configuration

4PDT

Time Increment

Minutes

Maximum Current

5A

Maximum Voltage

250V ac

Switch Configuration

4PDT

Terminal Type

Plug In

Power Supply

External

Width

21.5mm

Maximum Operating Temperature

+50°C

Series

H3Y-4

Depth

63mm

Length

28mm

Minimum Operating Temperature

-10°C

Time Delay

0.1s

Detalhes do produto

Miniature - H3Y4

Approvals

UL, CSA

Standards

EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110
