BARTH lococube mini-PLC Series PLC I/O Module for Use with STG-100, 7 → 32 V dc Supply, Analogue Output,
Documentos Técnicos
Especificações
Brand
BARTHManufacturer Series
lococube mini-PLC
Number of Inputs
8
Output Type
Analogue
For Use With
STG-100
Supply Voltage
7 → 32 V dc
Input Type
Analogue, Digital
Number of Outputs
12
Maximum Operating Temperature
+55°C
Output Current
5
Minimum Operating Temperature
-10°C
Dimensions
120 x 80 x 57 mm
Standards Met
EN 60068-2-30, EN 60068-2-6, EN 60068-2-78, EN 61000-6-2, EN 61000-6-4, EN 61010-1, IEC 60068-2-1/2, IEC/EN 60068-2-30, IEC/EN 60529, IEC61000-4-2, ISO 16750-3, ISO 7637-2
Communication Port Type
ICSP
Display Included
Yes
Program Capacity
64 kB
Depth
57mm
Length
120mm
Width
80mm
Mounting Type
Panel Mount
Programming Language Used
Basic, C/Assembler
País de Origem
Germany
Detalhes do produto

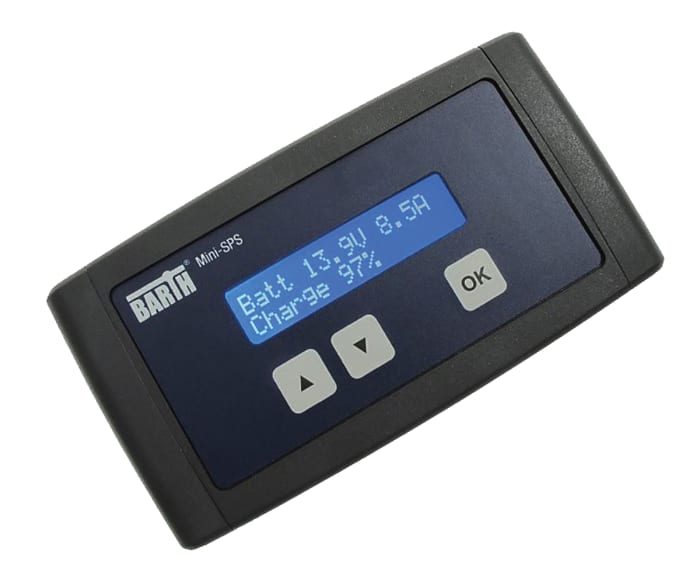

STG-100 - Mini-PLC
STG-100 is an outdoor Mini-PLC which comes in a robust splash-proof housing, and with a double-spaced TFT-Display with blue LED-backlight. The open hardware concept opens up completely new application fields.
Barth Mini-PLC
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
R$ 7.197,06
Each (Sem VAT)
1
R$ 7.197,06
Each (Sem VAT)
1
