Digi International Xbee ZigBee Module, +3dBm, ADC, API, CMOS, DIO, UART, USB Pan, RS232, RS485
Documentos Técnicos
Especificações
Brand
Digi InternationalMaximum Output Power
+3dBm
Receiver Sensitivity
-96dBm
Supported Bus Interfaces
ADC, API, CMOS, DIO, UART, USB
Protocol Type
Xbee
Supported Network Interfaces
Pan, RS232, RS485
Supply Voltage
2.1 → 3.6V
Dimensions
27.61 x 24.38 x 2.79mm
Height
2.79mm
Length
24.38mm
Maximum Operating Temperature
+85 °C
Minimum Operating Temperature
-40 °C
Width
27.61mm
País de Origem
United States
Detalhes do produto

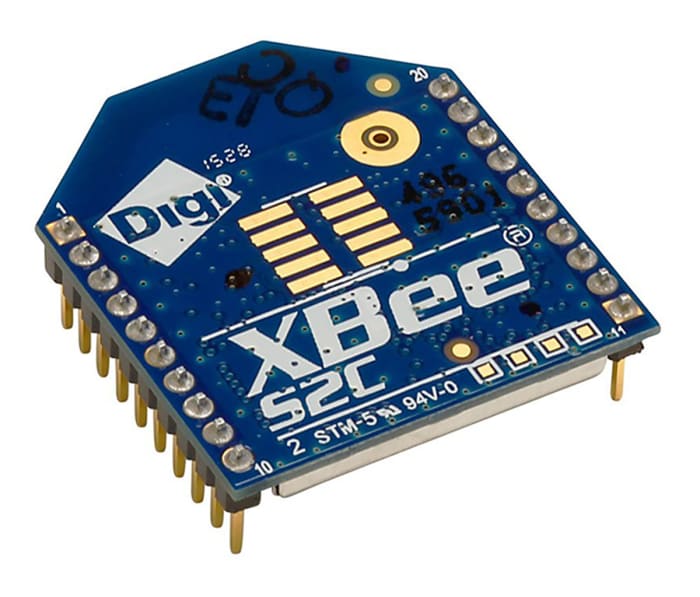

XBee ZB ZigBee RF Module
The XBee ZB ZigBee RF module operates in the 2.4GHz ISM Band and allows the formation of a mesh network. With its high receiver sensitivity it can provide line-of-sight communication for up to 120m.
Approvals
FCC, IC, ETSI, C-TICK, Japan
