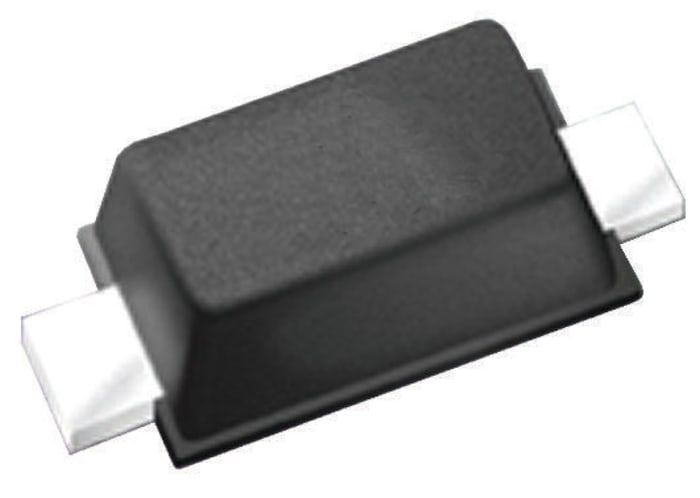

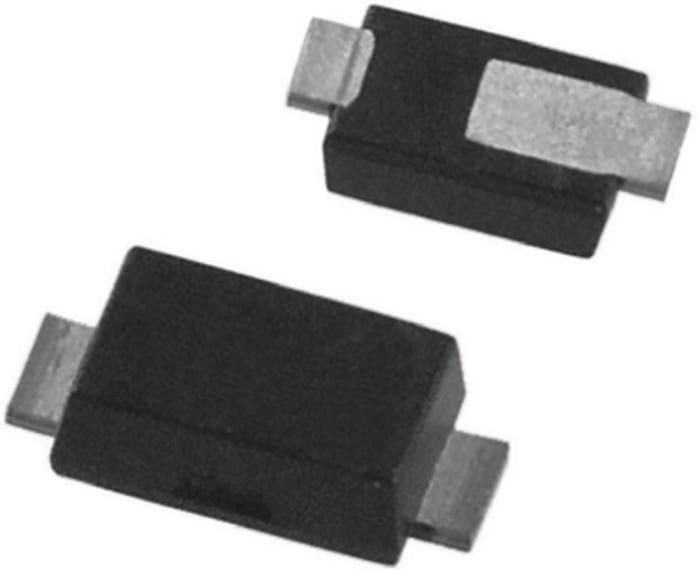

Diodes Inc DFLT220A-7, Uni-Directional TVS Diode, 1125W, 2-Pin POWERDI123
Documentos Técnicos
Especificações
Brand
DiodesZetexDirection Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
375V
Minimum Breakdown Voltage
242V
Mounting Type
Surface Mount
Package Type
POWERDI123
Maximum Reverse Stand-off Voltage
220V
Pin Count
2
Peak Pulse Power Dissipation
1125W
Maximum Peak Pulse Current
0.6A
Number of Elements per Chip
1
Minimum Operating Temperature
-65 °C
Maximum Operating Temperature
+150 °C
Dimensions
3 x 1.93 x 1mm
Maximum Reverse Leakage Current
5µA
Automotive Standard
AEC-Q101
Length
3mm
Height
1mm
Width
1.93mm
Test Current
1mA
Detalhes do produto
Automotive Transient Voltage Suppressor, Diodes Inc
A range of single, dual and quad Transient Voltage Suppressors (TVS) suitable for automotive applications. All are qualified to AEC-Q101 standard.
Standards
AEC-Q101
Transient Voltage Suppressors, Diodes Inc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 300,00
R$ 6,00 Each (In a Pack of 50) (Sem VAT)
Padrão
50
R$ 300,00
R$ 6,00 Each (In a Pack of 50) (Sem VAT)
Informações de estoque temporariamente indisponíveis.
Padrão
50
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário | Per Pacote |
|---|---|---|
| 50 - 200 | R$ 6,00 | R$ 300,00 |
| 250 - 450 | R$ 3,46 | R$ 173,00 |
| 500 - 1200 | R$ 3,35 | R$ 167,50 |
| 1250 - 2450 | R$ 2,46 | R$ 123,00 |
| 2500+ | R$ 2,35 | R$ 117,50 |
