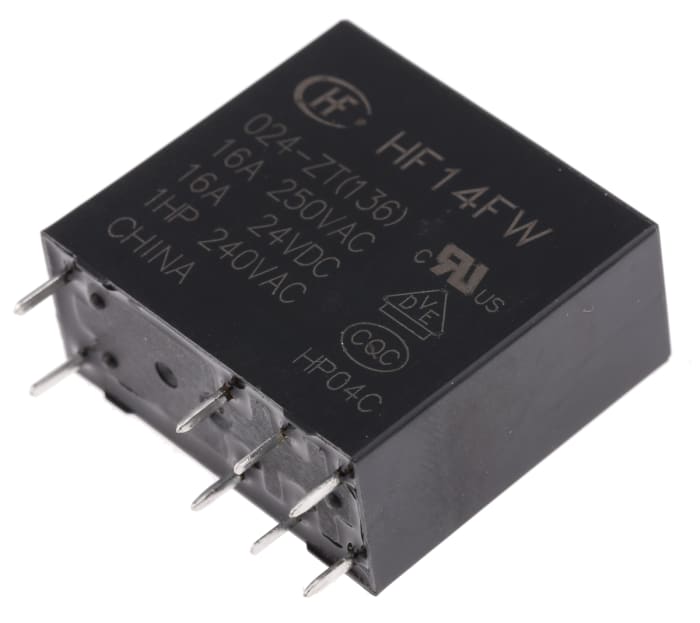

Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 20A Switching Current, SPDT

Nº de Estoque RS: 176-2855Marca: Hongfa Europe GMBHPart Number: HF14FW/024-ZPTF
brand-logo
Ver tudo em Power Relays

Documentos Técnicos

Especificações

Brand

Hongfa Europe GMBH

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

20A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

277V

Maximum Switching Voltage DC

30V dc

Maximum Switching Current AC

20 A

Maximum Switching Current DC

20 A

Length

29mm

Coil Resistance

820Ω

Coil Power

720mW

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

4kV

Life

1 x 10^7 cycles

Minimum Operating Temperature

-40°C

Series

HF14FW

Height

26.5mm

Depth

13mm

Contact Material

Silver Alloy

Maximum Switching Power AC

5.54 kVA

Maximum Switching Power DC

480 W

País de Origem

China
