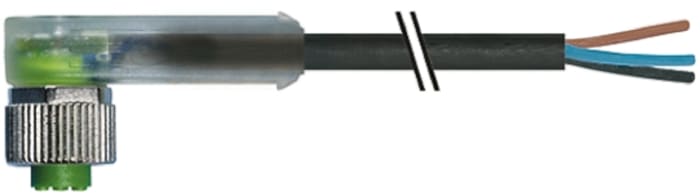

Lumberg Automation Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m
Documentos Técnicos
Especificações
Brand
Lumberg AutomationSeries
PRKWT
Cross Sectional Area
0.25 mm²
Number of Cores
4
Sheath Colour
Orange
Length
10m
Sheath Material
PUR
Connector 1 Orientation
Right Angle
Connector 1 Number of Contacts
4
Connector 1 Gender
Female
Connector 1
M12
Connector 2
Unterminated
Shielded/Unshielded
Unshielded
Voltage Rating
32 V
IP Rating
IP67, IP69K
Connector 1 Housing Gender
Female
Maximum Operating Temperature
+70°C
American Wire Gauge
24 AWG
Operating Temperature Range
-25 → +70 °C
Minimum Operating Temperature
-25°C
R$ 616,39
R$ 616,39 Each (Sem VAT)
1
R$ 616,39
R$ 616,39 Each (Sem VAT)
Informações de estoque temporariamente indisponíveis.
1
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário |
|---|---|
| 1 - 4 | R$ 616,39 |
| 5+ | R$ 594,42 |
