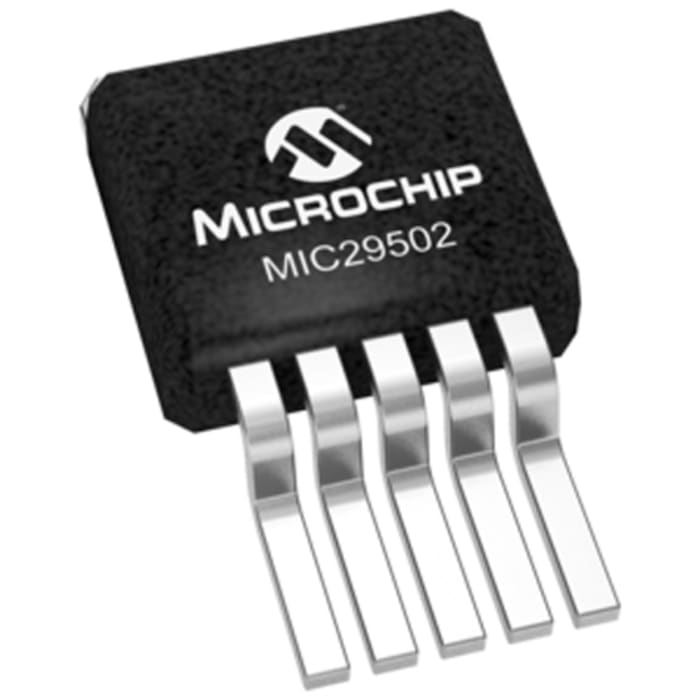

Micrel MIC29502WU, LDO Voltage Regulator, 5A Adjustable, 1.25 → 26 V, ±1% 6-Pin, D2PAK
Documentos Técnicos
Especificações
Brand
MicrelMaximum Output Current
5A
Output Voltage
1.25 → 26 V
Number of Outputs
1
Line Regulation
0.5 %
Accuracy
±1%
Load Regulation
1 %
Polarity
Positive
Mounting Type
Surface Mount
Package Type
TO-263
Pin Count
6
Reference Voltage
1.252V
Output Type
Adjustable
Dimensions
10.67 x 9.17 x 4.59mm
Maximum Input Voltage
26 V
Minimum Input Voltage
2.5 V
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Height
4.59mm
Length
10.67mm
Width
9.17mm
Detalhes do produto
MIC29502 5A Low Dropout Voltage Regulator
LDO (Low Dropout) Linear Voltage Regulators, Microchip
