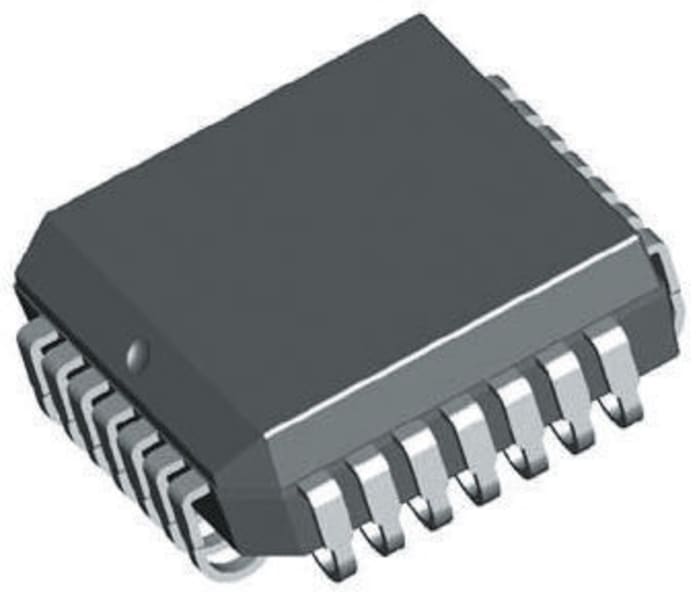

Microchip ATF22V10CQZ-20JU, SPLD Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 最低50MHz
Documentos Técnicos
Especificações
Brand
MicrochipFamily Name
ATF22V10C
Number of Gates
350
Number of Macro Cells
10
Number of User I/Os
10
Maximum Internal Frequency
最低50MHz
Re-programmability Support
Yes
Mounting Type
Surface Mount
Package Type
PLCC
Pin Count
28
Maximum Propagation Delay Time
20ns
Fabrication Technology
CMOS, TTL
Dimensions
11.58 x 11.58 x 4.06mm
Height
4.06mm
Width
11.58mm
Minimum Operating Temperature
-40 °C
Length
11.58mm
Maximum Operating Supply Voltage
5 V
Maximum Operating Temperature
+85 °C
Propagation Delay Test Condition
50pF
País de Origem
Thailand
Detalhes do produto
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 113,14
R$ 56,57 Each (In a Pack of 2) (Sem VAT)
Padrão
2
R$ 113,14
R$ 56,57 Each (In a Pack of 2) (Sem VAT)
Informações de estoque temporariamente indisponíveis.
Padrão
2
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário | Per Pacote |
|---|---|---|
| 2 - 8 | R$ 56,57 | R$ 113,14 |
| 10 - 22 | R$ 56,18 | R$ 112,36 |
| 24 - 98 | R$ 55,28 | R$ 110,56 |
| 100+ | R$ 55,21 | R$ 110,42 |
