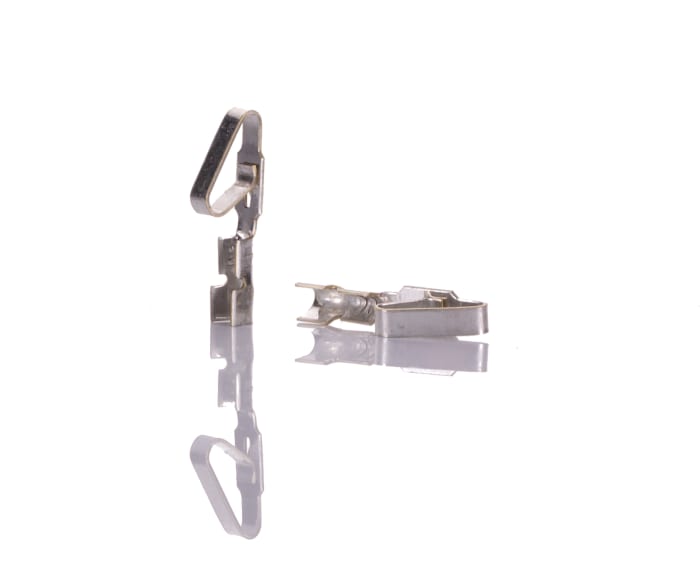

Molex KK 396 Series Female Crimp Terminal, 26AWG Min, 22AWG Max
Documentos Técnicos
Especificações
Brand
MolexGender
Female
For Use With
KK 396 Connector Housing
Series
KK 396
Minimum Wire Size mm²
0.1mm²
Maximum Wire Size mm²
0.35mm²
Termination Method
Crimp
Minimum Wire Size AWG
26AWG
Contact Plating
Gold
Maximum Wire Size AWG
22AWG
Contact Material
Brass
Series Number
2578
Maximum Contact Resistance
10mΩ
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+50°C
Detalhes do produto
18 to 26 AWG Crimp, Female, Connector Contacts
Molex, the 2478 and 2578 Series connector contacts feature a dual cantilever design. The square post contact area keeps contact with the male pin header through spring-like contact. A locking tang prevents terminal back out once loaded in housing.
3.96mm Molex KK Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 1.106,00
R$ 11,06 Each (In a Pack of 100) (Sem VAT)
Padrão
100
R$ 1.106,00
R$ 11,06 Each (In a Pack of 100) (Sem VAT)
Informações de estoque temporariamente indisponíveis.
Padrão
100
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário | Per Pacote |
|---|---|---|
| 100 - 900 | R$ 11,06 | R$ 1.106,00 |
| 1000 - 2900 | R$ 9,00 | R$ 900,00 |
| 3000+ | R$ 8,77 | R$ 877,00 |
