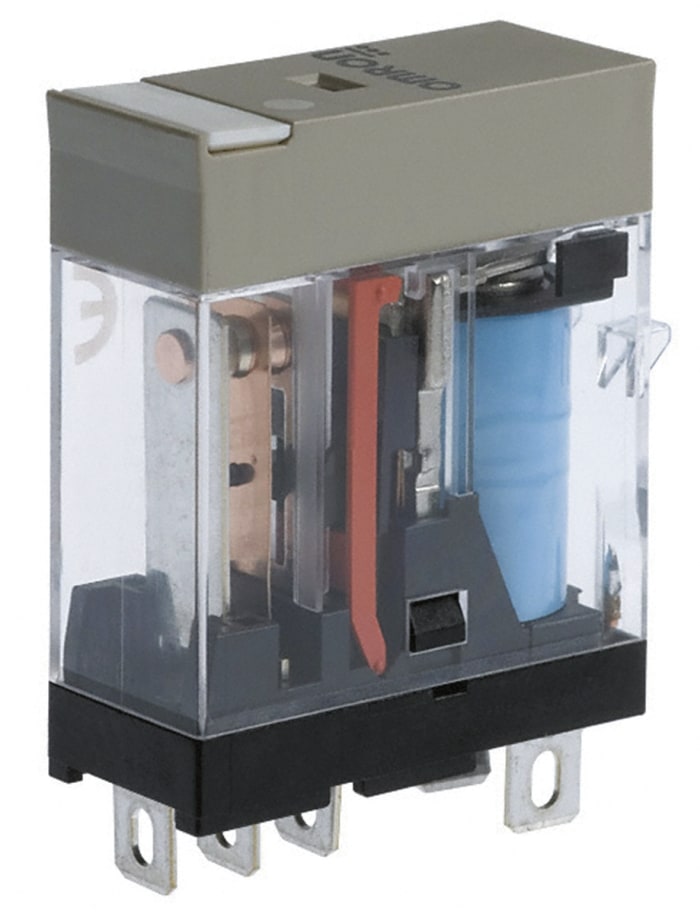

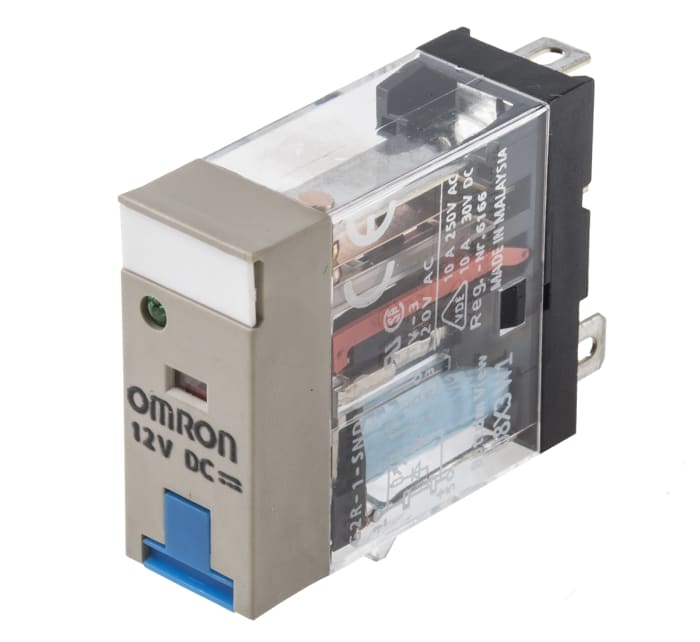

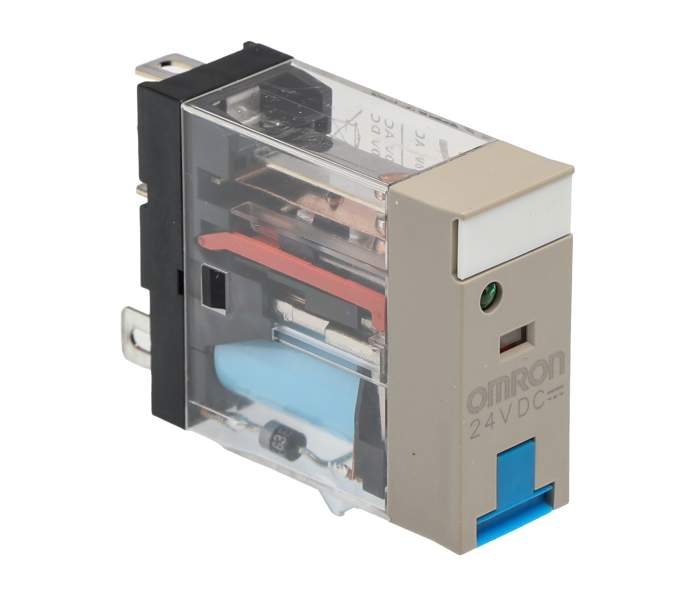

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Documentos Técnicos
Especificações
Brand
OmronCoil Voltage
24V dc
Contact Configuration
SPDT
Mounting Type
Plug In
Switching Current
10A
Number of Poles
1
Latching
No
Terminal Type
Through Hole
Maximum Switching Voltage AC
380V ac
Maximum Switching Voltage (AC)
380V ac
Maximum Switching Voltage DC
125V dc
Maximum Switching Voltage (DC)
125V dc
Maximum Switching Current DC
10 A
Maximum Switching Current AC
10 A
Maximum Switching Current (DC)
10 A
Maximum Switching Current (AC)
10 A
Length
29mm
Coil Resistance
1100Ω
Coil Power
530mW
Height
29mm
Standards Met
CE, CSA
Depth
13mm
Life
1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
Series
G2R
Contact Material
Silver Alloy
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
5kV ac
Maximum Switching Power DC
300 W
Width
40.5mm
Maximum Switching Power AC
2.5 kVA
Application
Power
Dimensions
40.5 x 29 x 13mm
País de Origem
Malaysia
Detalhes do produto
G2RS Series with Test Button & Back E.M.F Suppression Diode
Approvals
UL, CSA, VDE
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
R$ 208,87
Each (Sem VAT)
1
R$ 208,87
Each (Sem VAT)
1
Comprar em grandes quantidades
| Quantidade | Preço unitário |
|---|---|
| 1 - 4 | R$ 208,87 |
| 5 - 9 | R$ 206,18 |
| 10+ | R$ 199,93 |
