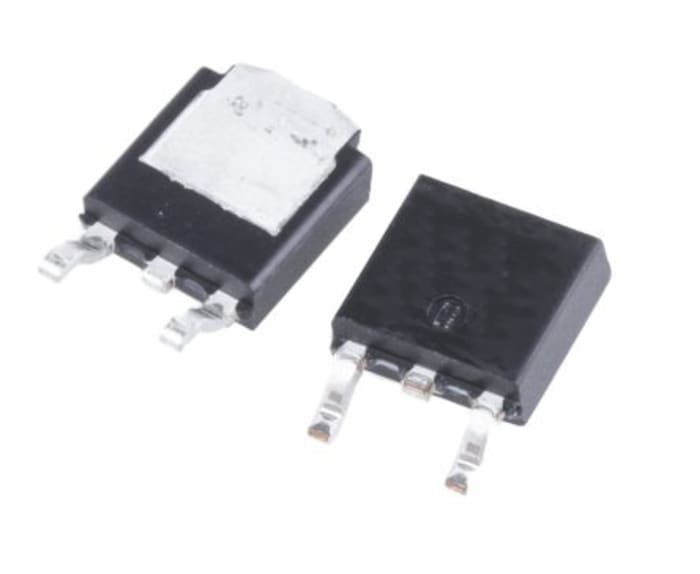

onsemi N-Channel MOSFET, 83 A, 40 V, 3-Pin DPAK NVD5C454NT4G
Documentos Técnicos
Especificações
Brand
onsemiChannel Type
N
Maximum Continuous Drain Current
83 A
Maximum Drain Source Voltage
40 V
Package Type
DPAK (TO-252)
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
4.2 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
56 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Width
6.22mm
Length
6.73mm
Typical Gate Charge @ Vgs
32 nC @ 10 V
Maximum Operating Temperature
+175 °C
Height
2.25mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
País de Origem
Vietnam
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 269,00
R$ 26,90 Each (In a Pack of 10) (Sem VAT)
Padrão
10
R$ 269,00
R$ 26,90 Each (In a Pack of 10) (Sem VAT)
Informações de estoque temporariamente indisponíveis.
Padrão
10
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário | Per Pacote |
|---|---|---|
| 10 - 90 | R$ 26,90 | R$ 269,00 |
| 100 - 240 | R$ 23,53 | R$ 235,30 |
| 250+ | R$ 20,72 | R$ 207,20 |
