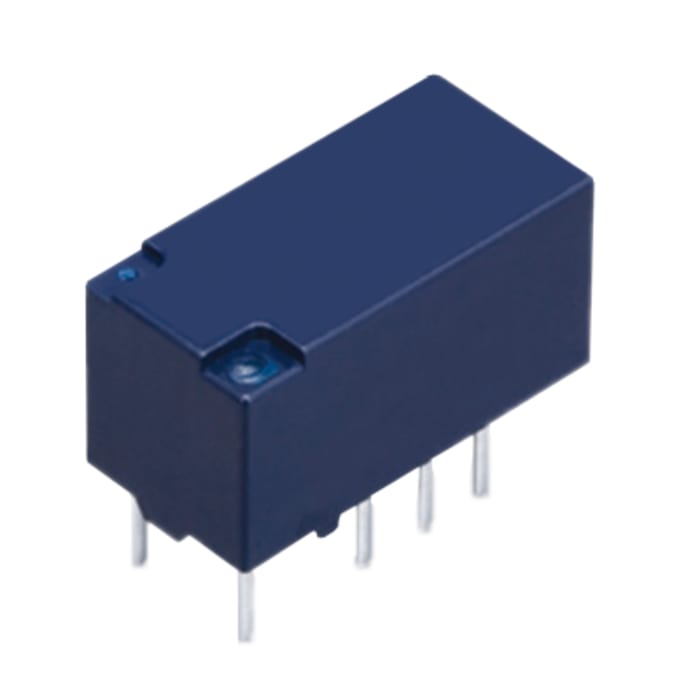

Panasonic PCB Mount Latching Signal Relay, 12V dc Coil, 3A Switching Current, DPDT
Documentos Técnicos
Especificações
Brand
PanasonicCoil Voltage
12V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Maximum Switching Current AC
3 A
Maximum Switching Current DC
3 A
Maximum Switching Voltage AC
250V ac
Maximum Switching Voltage DC
220V dc
Maximum Switching Power DC
60 W
Length
20mm
Latching
Yes
Depth
9.9mm
Height
9.9mm
Dimensions
20 x 9.9 x 9.9mm
Terminal Type
PCB Pin
Application
Telecommunications
Switching Current
3A
Life
10000000 operations
Maximum Switching Power AC
125VA
Coil Resistance
800Ω
Operating Temperature Range
-40 → +70°C
Features
Gold-clad Twin Contacts Ensure High Reliability, Polarized Magnetic Circuits Realize Resistance to Shock and Vibration, Suitable for use in Difficult Environments
Contact Material
Gold Plated
Coil Power
180mW
Electrical Life
500000 operations
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
1.5kV rms
