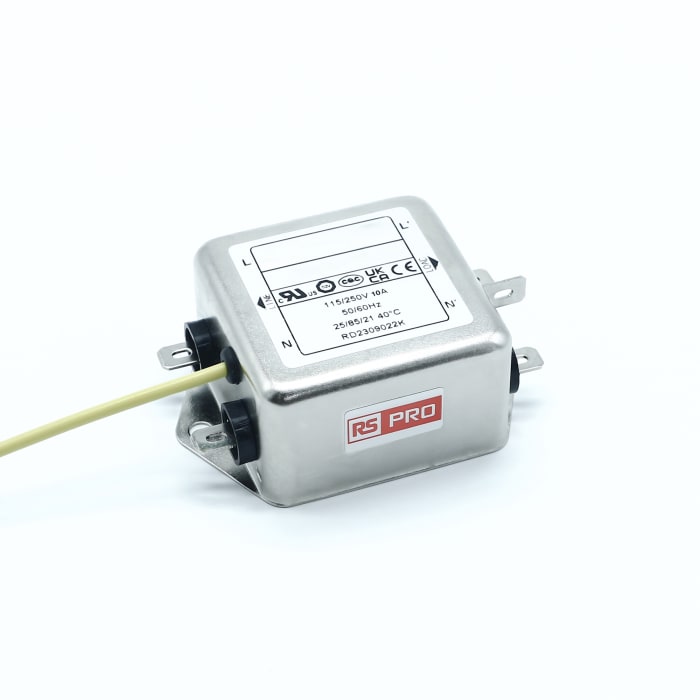

RS PRO 10A 250 V ac 400Hz, Chassis Mount RFI Filter, Tab

Nº de Estoque RS: 239-860Marca: RS PRO
brand-logo
View all in Filtros Lineares de Força

Documentos Técnicos

Especificações

Brand

RS Pro

Maximum Current Rating

10A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Tab

Series

DFHF

Number of Stages

Two Stage

Operating Frequency

400Hz

Length

46mm

Depth

76mm

Capacitance

0.1 x 2 μF, 2200 x 2pF

Height

28mm

Inductance

0.3 x 2 mH

Dimensions

46 x 76 x 28mm

Minimum Operating Temperature

-25°C

Leakage Current

0.2 mA

Maximum Operating Temperature

+85°C

Resistance

1MΩ

País de Origem

Finland
