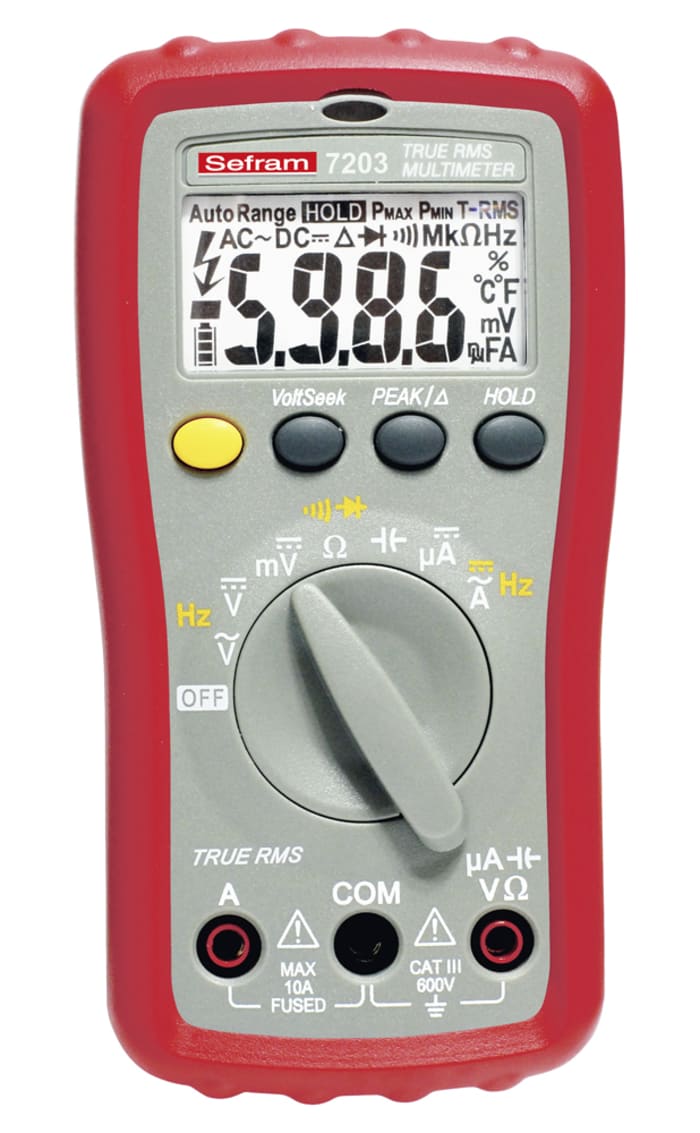

Sefram 7204 720X Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V ac Max

Brand

Product Type

Multimeter

Multimeter Type

Handheld

Resistance Resolution

10Ω

Model Number

7204

Display Type

Digital

Functions Measured

DC Current, AC Voltage, Continuity, AC Current, Frequency, Resistance, Capacitance, Temperature, DC Voltage

Maximum AC Current Measurement

10A

Maximum Resistance Measurement

40mΩ

Maximum DC Voltage Measurement

600V dc

Maximum DC Current Measurement

10A

Maximum AC Voltage Measurement

600V ac

True RMS

Yes

AC Voltage Accuracy

1 % rdg + 3 Digits

AC Current Accuracy

1.5 % rdg + 5 Digits

DC Voltage Accuracy

0.5 % rdg + 3 Digits

DC Current Resolution

1A

AC Voltage Resolution

0.1mV ac

AC Current Resolution

1mA

DC Voltage Resolution

0.1 to 0.1 mV dc

Maximum Frequency

50kHz

Power Source

Battery

Minimum Operating Temperature

0°C

Resistance Measurement Accuracy

0.5 % rdg + 2 Digits

Maximum Operating Temperature

40°C

Battery Life

300h

Weight

320g

Standards/Approvals

No

Series

720X

Other Measurement Resolution

0.01nF

Other Measurement Range

Capacitance (50 nF to 1000 F), Temperature (-40°C to 400°C), Frequency (100 Hz to 50 kHz)

Safety Category Level

CAT III

Battery Type

AAA

Safety Category Voltage

600V

País de Origem

Taiwan, Province Of China
