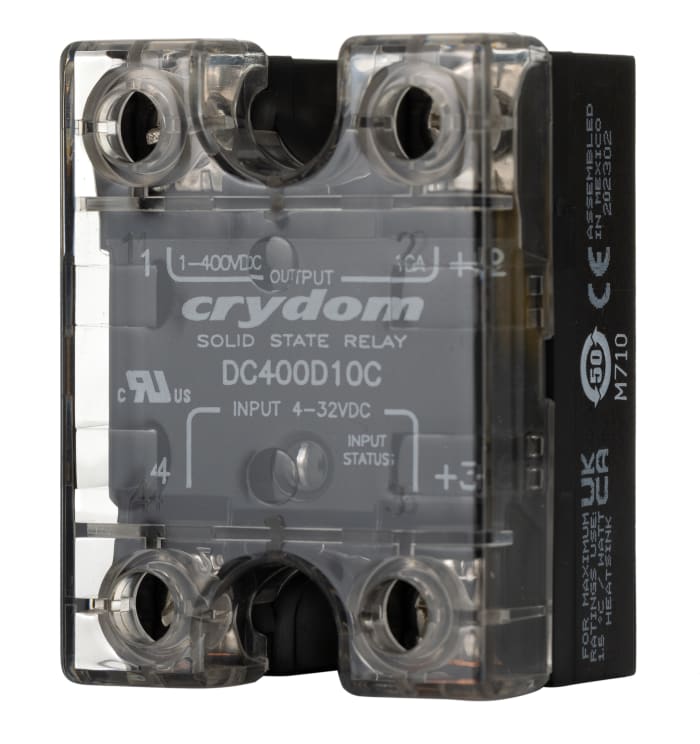

Sensata Crydom DC Series Series Solid State Relay, 10 A Load, Panel Mount, 300 V dc Load, 32 V dc Control
Documentos Técnicos
Especificações
Brand
Sensata / CrydomMaximum Load Current
10 A
Mounting Type
Panel Mount
Maximum Load Voltage
300 V dc
Minimum Load Voltage
1 V dc
Maximum Control Voltage
32 V dc
Minimum Control Voltage
4 V dc
Switching Type
Instantaneous
Control Voltage Range
4 → 32 V dc
Minimum Load Current
2.5 mA
Contact Configuration
SPST
Terminal Type
Screw
Output Device
MOSFET
Relay Type
Solid State Relay
Package Style
Panel Mount
Load Voltage Range
1 → 300V dc
Maximum Turn On Time
0.075ms
Series
DC Series
Dimensions
57.3 x 44.5 x 26.8mm
Depth
44.5mm
Maximum Operating Temperature
+100°C
Height
26.8mm
Off State Leakage Current
0.4 mA
Length
57.3mm
Operating Temperature Range
-30 → +80°C
Standards Met
CE, RoHS Compliant
Minimum Operating Temperature
-40°C
Capacitance
8pF
País de Origem
Mexico
Detalhes do produto
Panel Mount - PowerPlus DC
Approvals
UL, CE
DC Switching
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 2.484,53
R$ 2.484,53 Each (Sem VAT)
1
R$ 2.484,53
R$ 2.484,53 Each (Sem VAT)
Informações de estoque temporariamente indisponíveis.
1
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário |
|---|---|
| 1 - 4 | R$ 2.484,53 |
| 5 - 9 | R$ 2.396,29 |
| 10 - 24 | R$ 2.304,78 |
| 25 - 49 | R$ 2.208,94 |
| 50+ | R$ 2.109,76 |
