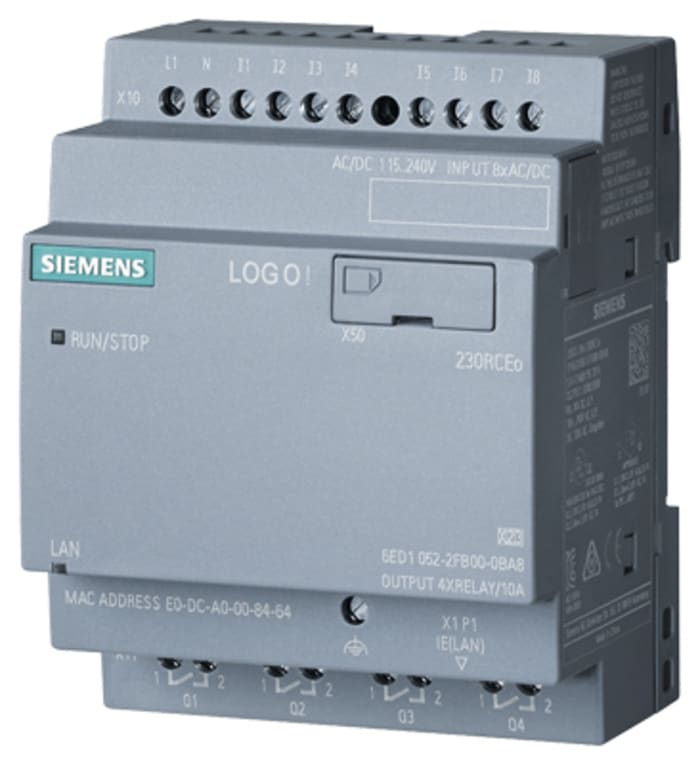

Siemens LOGO! 8 Logic Module, 115 V ac/dc, 230 V ac/dc Relay, 8 x Input, 4 x Output Without Display

Nº de Estoque RS: 825-1650Marca: SiemensPart Number: 6ED1052-2FB00-0BA8
brand-logo

Documentos Técnicos

Especificações

Brand

Siemens

Manufacturer Series

LOGO! 8

Number of Inputs

8

Output Type

Relay

For Use With

LOGO Series

Supply Voltage

115 V ac/dc, 230 V ac/dc

Input Type

Digital

Number of Outputs

4

Network Type

Ethernet

Dimensions

90 x 71.5 x 60 mm

Communication Port Type

RJ45

Minimum Operating Temperature

0°C

Display Included

No

Depth

60mm

Length

90mm

Width

71.5mm

Mounting Type

DIN Rail

Programming Language Used

FBD, Ladder Logic

Output Current

10 A

Maximum Operating Temperature

+55°C

Programming Interface

Computer

País de Origem

China

Detalhes do produto

LOGO! 8 - Logic Modules

LOGO!8 is the latest generation of intelligent Logic Modules from Siemens, offering a refined upgrade from the previous generation. Improvements include simplified handling, new optical indicating display and full communication functions via Ethernet across the full range of Logic Modules.
Another added benefit of the LOGO!8 is that all Logic Modules come equipped with an integrated Web Server for monitoring and control with LOGO! via WLAN and the Internet; easy to configure, no HTML programming knowledge required.

Siemens LOGO! 8 Series
