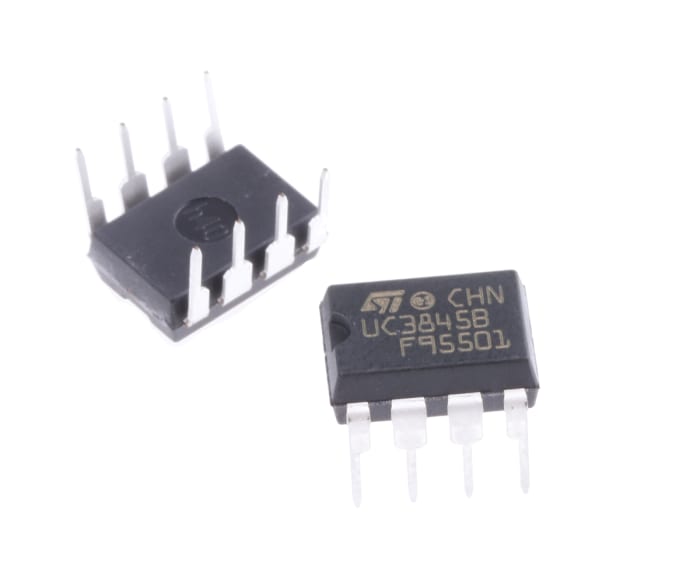

STMicroelectronics UC3845BN, PWM Controller, 500 kHz 8-Pin, PDIP
Documentos Técnicos
Especificações
Brand
STMicroelectronicsMaximum Switching Frequency
500 kHz
Output Current
1 A
Control Method
Current
Number of Outputs
1
Mounting Type
Through Hole
Fall Time
50ns
Rise Time
50ns
Package Type
PDIP
Pin Count
8
Topology
Boost, Flyback
Maximum Duty Cycle
50%
Dimensions
10.92 x 6.6 x 3.32mm
Length
10.92mm
PWM Controller Type
Current Mode
Width
6.6mm
Height
3.32mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+150 °C
País de Origem
Malaysia
Detalhes do produto
PWM Controllers, STMicroelectronics
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
PWM (Pulse Width Modulation) Controllers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
R$ 440,00
R$ 8,80 Each (In a Tube of 50) (Sem VAT)
50
R$ 440,00
R$ 8,80 Each (In a Tube of 50) (Sem VAT)
Informações de estoque temporariamente indisponíveis.
50
Informações de estoque temporariamente indisponíveis.
| Quantidade | Preço unitário | Per Tubo |
|---|---|---|
| 50 - 50 | R$ 8,80 | R$ 440,00 |
| 100 - 450 | R$ 5,77 | R$ 288,50 |
| 500 - 950 | R$ 5,56 | R$ 278,00 |
| 1000 - 1950 | R$ 4,33 | R$ 216,50 |
| 2000+ | R$ 4,20 | R$ 210,00 |
