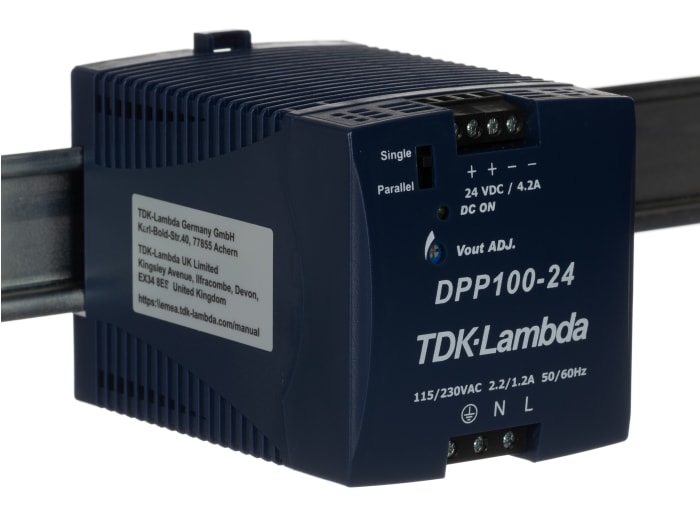

TDK-Lambda DPP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 24V dc dc
Documentos Técnicos
Especificações
Brand
TDK-LambdaSeries
DPP
Type
Switched Mode
Electrical Phase
1
AC or DC Input Voltage
ac, dc
Number of Outputs
1
Input Voltage
85 → 264 V ac / 90 → 375V dc
AC or DC Output Voltage
dc
Output Voltage
24V dc
Output Current
2.1A
Power Rating
50W
Dimensions
3.58 x 1.77 x 2.95in
Height
75mm
Depth
91mm
Width
45mm
Maximum Temperature
+71°C
Minimum Temperature
-10°C
MTBF
269000h
Load Regulation
±0.5%
Mounting Type
DIN Rail Mount
Ripple And Noise
50mV
País de Origem
Taiwan, Province Of China
Detalhes do produto
15W to 100W DPP Series
Informações de estoque temporariamente indisponíveis.
Verifique novamente mais tarde.
R$ 1.499,94
Each (Sem VAT)
1
R$ 1.499,94
Each (Sem VAT)
1
