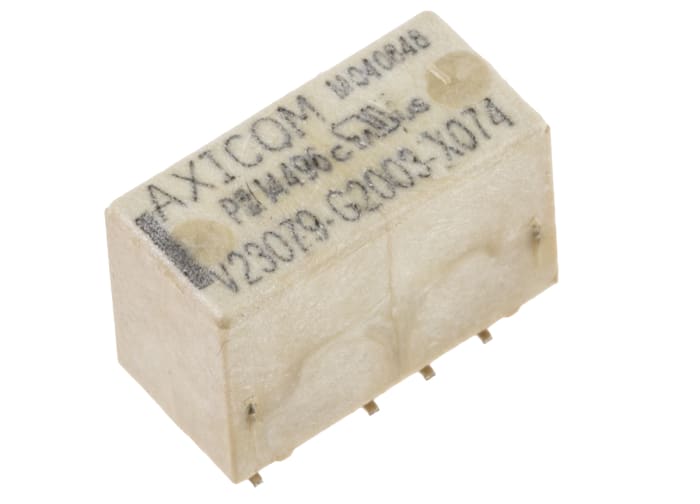

TE Connectivity PCB Mount Non-Latching Relay, 12V dc Coil, 2A Switching Current, DPDT
Documentos Técnicos
Especificações
Brand
TE ConnectivityCoil Voltage
12V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Switching Current
2A
Terminal Type
Surface Mount
Length
10mm
Coil Resistance
1.028 kΩ
Coil Power
140mW
Contact Material
Gold Plated
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Depth
7.5mm
Height
5.65mm
Maximum Switching Power DC
60 W
Maximum Switching Power AC
62.5VA
Application
Signal
