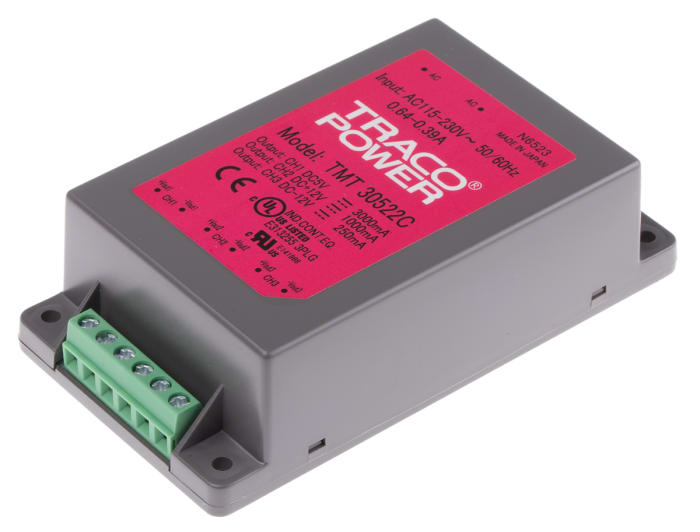

TRACOPOWER Switching Power Supply, TMP 30522C, 5 V dc, ±12 V dc, 1 A, 3 A, 250 mA, 30W, Triple Output, 120 → 370

Nº de Estoque RS: 664-1528Marca: TRACOPOWERPart Number: TMP 30522C
brand-logo
Ver tudo em Switching Power Supplies

Documentos Técnicos

Especificações

Output Voltage

5 V dc, ±12 V dc

Output Current

1 A, 3 A, 250 mA

Power Rating

30W

Number of Outputs

3

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Encapsulated

Length

112mm

Width

63.8mm

Embedded

No

Depth

25.6mm

Series

TMP & TMPM

Efficiency

76%

Minimum Temperature

-25°C

Weight

208g

Maximum Temperature

+60°C

País de Origem

Taiwan, Province Of China

Detalhes do produto

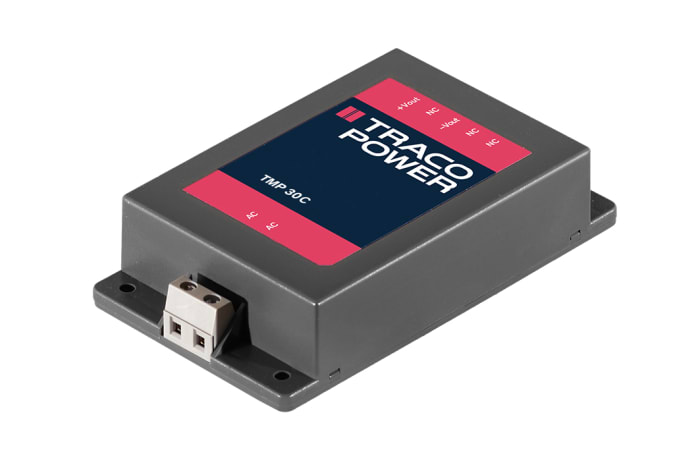

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Approvals

CB, UL recognised component for Canada & US

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Switch Mode - Traco, TMP and TMPM Series
