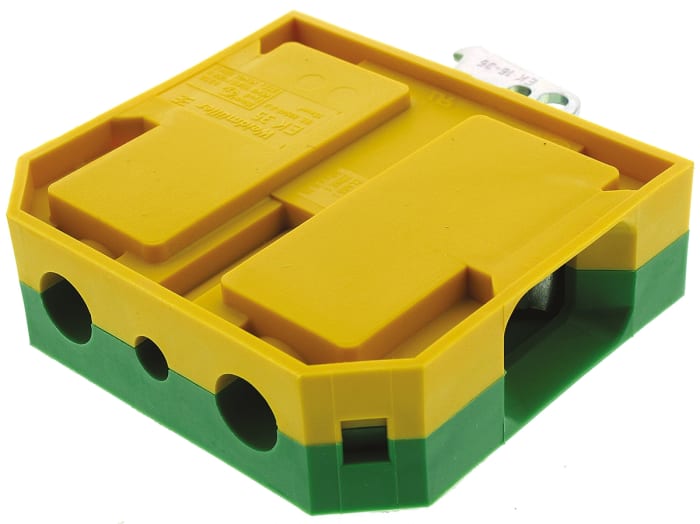

Weidmüller 2-Way EK 16 Earth Terminal Block, 10 → 6 AWG Wire, Screw Down, Nylon Housing, ATEX

Nº de Estoque RS: 489-5240Marca: WeidmüllerPart Number: EK 16 -374660000
brand-logo
View all in Earth Terminal Blocks

Documentos Técnicos

Especificações

Brand

Weidmuller

Earth Block Type

EK 16

Wire Size

10 → 6 AWG

Colour

Green/Yellow

Number Of Ways

2

Termination Method

Screw Down

Housing Material

Nylon

Current Rating

80A

Voltage Rating

800 V

Length

50mm

Width

12mm

Height

57.5mm

Maximum Operating Temperature

+80°C

Hazardous Area Certification

ATEX

Minimum Operating Temperature

-50°C

País de Origem

Romania

Detalhes do produto

Earth Terminals

These have same dimensions as the standard terminals. Terminals clamp mechanically and electrically to the G type (TS32) DIN rail.

Approvals

CSA certified, UL listed, VDE PTB, NEMKO, SEV, KEMA, DEMKO, SEMKO

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
