Wurth Elektronik Surface Mount Pulse Transformer 1:1:1:1:1:1 Turns Ratio

Nº de Estoque RS: 522-5989Marca: Wurth ElektronikPart Number: 749196111Distrelec Article No.: 30173898
brand-logo
Ver tudo em Pulse Transformers

Documentos Técnicos

Especificações

Brand

Wurth Elektronik

Turns Ratio

1:1:1:1:1:1

Mounting Type

Surface Mount

Leakage Inductance

0.21µH

Dimensions

12.9 x 9.2 x 6.2mm

Depth

6.2mm

Length

12.9mm

Width

9.2mm

Maximum Operating Frequency

1MHz

Minimum Temperature

-40°C

Isolation Voltage

500V dc

Maximum Temperature

+125°C

Detalhes do produto

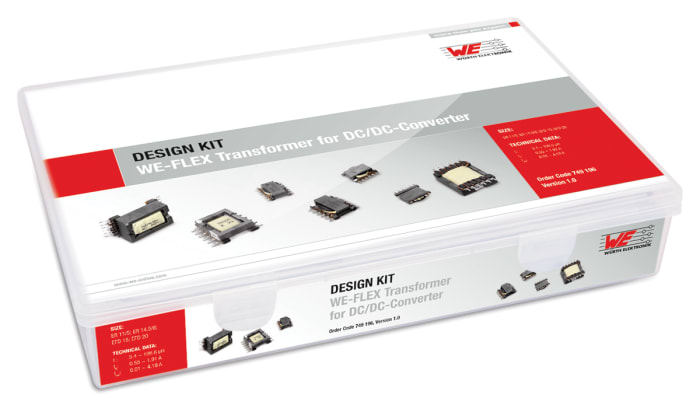

WE-FLEX Transformers
