Keithley 2000/E Bench Digital Multimeter, True RMS, 3A ac Max, 3A dc Max, 750V ac Max
Documentos Técnicos
Especificações
Brand
KeithleyMultimeter Type
Bench
Model Number p
2000/E
Display Type
Digital
Functions Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature
Absolute Maximum DC Current Measurement
3A dc
Absolute Maximum Resistance Measurement
100MΩ
Absolute Maximum AC Current Measurement
3A ac
Absolute Maximum DC Voltage Measurement
1000V dc
Absolute Maximum AC Voltage Measurement
750V ac
True RMS
Yes
Absolute Maximum Temperature Measurement
+1372°C
Maximum Frequency
500kHz
DC Current Measurement Resolution
10µA dc
AC Current Measurement Resolution
1µA ac
AC Voltage Measurement Resolution
0.1µV ac
DC Voltage Measurement Resolution
0.1µV dc
Resistance Measurement Resolution
100mΩ
Temperature Measurement Resolution
0.001°C
Best DC Current Accuracy
±0.12% + 4 Digits
Weight
2.9kg
Height
89mm
Minimum Operating Temperature
0°C
Best Resistance Measurement Accuracy
±0.15% + 3 Digits
Maximum Operating Temperature
+50°C
Width
213mm
Best AC Current Accuracy
±0.35% + 0.06
Length
370mm
Best AC Voltage Accuracy
±0.6% + 0.08
Dimensions
89 x 213 x 370mm
Best Temperature Measurement Accuracy
±0.5 °C
Best DC Voltage Accuracy
±0.005% + 3.5 Digits
País de Origem
China
Detalhes do produto

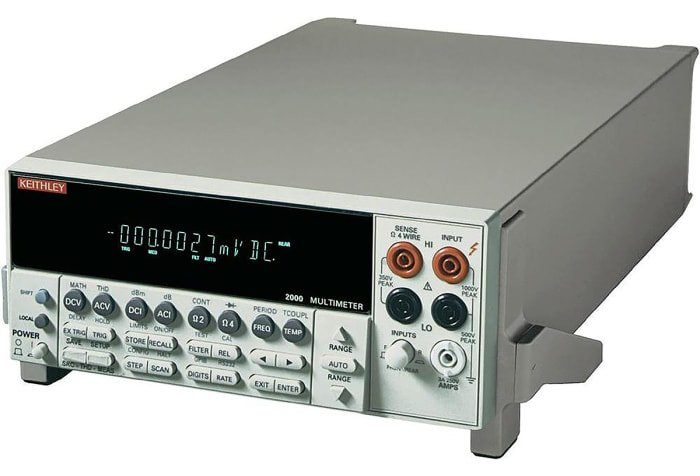

Keithley 2000 6-Digit Multimeter
The 2000/E is a fast, accurate, highly stable, affordable and easy-to-operate instrument. It combines broad measurement ranges with superior accuracy specifications: DC voltage from 100 nV to 1 kV (with 0.002% 90-day basic accuracy); DC resistance from 100μΩ to 100 MΩ (with 0.008% 90-day basic accuracy). For greater flexibility, a built-in card slot found on the rear panel allows an extra multiplexer card for multi-point measurement applications.
Supplied with
instruction manual, safety test leads
Keithley
P.O.A.
Calibration type
No Calibration
1
P.O.A.
Calibration type
No Calibration
1
