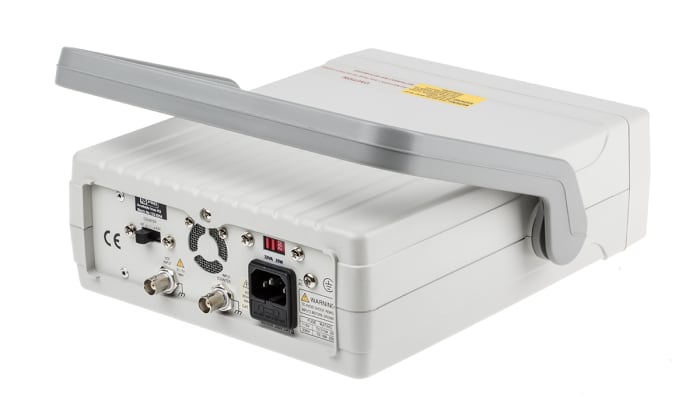

RS PRO GFG8216A Function Generator & Counter, 0.3Hz Min, 3MHz Max, Variable Sweep

Nº de Estoque RS: 123-3554Marca: RS PRO
brand-logo
Ver tudo em Function Generators

Documentos Técnicos

Especificações

Brand

RS Pro

Maximum Frequency Range Sinewave

3MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

3MHz

Minimum Frequency Range Sinewave

0.3Hz

Variable Sweep

Yes

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.3 Hz

Time Base Accuracy

±10ppm

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

3MHz

Minimum Frequency Range Triangle/Saw

0.3Hz

Frequency Range Square Pulse and Arbitrary Waveform

0.3 Hz → 3 MHz

Minimum Operating Temperature

0°C

Height

91mm

Input Impedance

1 (Frequency Counter) MΩ, 1 (VCF) kΩ

Length

251mm

Plug Type

UK

Attenuation

-20dB

Internal Linear and Log Sweep

Yes

CMOS Output Level

4 → 14.5V Pk-Pk

Dimensions

251 x 291 x 91mm

Internal and External Amplitude Modulation

Yes

Maximum Operating Temperature

+40°C

Model Number

GFG8216A

Output Amplitude

>10V Pk-Pk

Digital Amplitude and Offset

Yes

Width

291mm

TTL Output Level

≥3V Pk-Pk

Weight

2.1kg

País de Origem

China

Detalhes do produto

RS PRO Function Generator

From RS PRO, comes a range of high quality and user-friendly function generators. Manufactured to industry standards, these function generators are stable, low-distortion instruments which generate signals in the frequency range up to 3 MHz and the counter can be switched to measure and display the frequency of an external signal up to 150 MHz

Supplied with

Instruction manual, test leads
