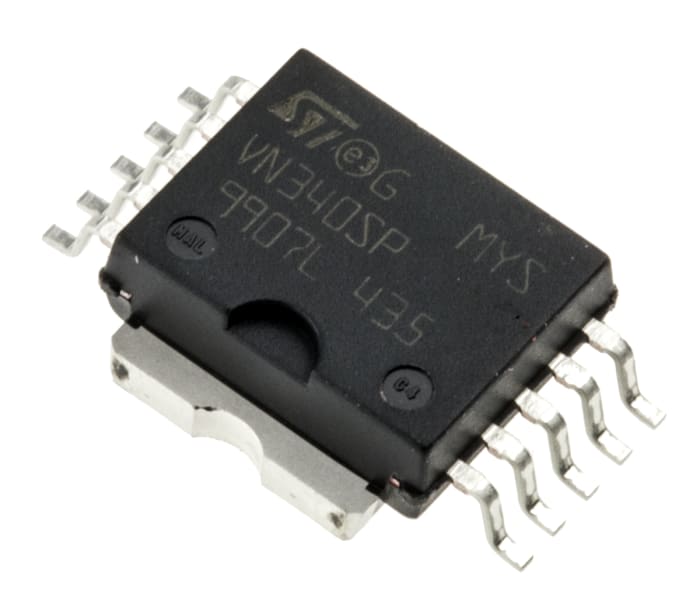

STMicroelectronics VN340SP-E High Side, Solid State Relay Power Switch IC 10-Pin, SOIC
Documentos Técnicos
Especificações
Brand
STMicroelectronicsPower Switch Topology
High Side
Power Switch Type
Solid State Relay
Product Type
Power Switch IC
Switch On Resistance RdsOn
0.2Ω
Number of Outputs
4
Mount Type
Surface
Minimum Supply Voltage
1V
Package Type
SOIC
Maximum Supply Voltage
36V
Pin Count
10
Operating Current
0.7A
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
150°C
Width
9.6 mm
Height
3.65mm
Length
9.5mm
Standards/Approvals
IEC 61131-2
Series
VN340SP-E
Automotive Standard
No
Detalhes do produto
Intelligent High Side Power Switches, STMicroelectronics
Intelligent Power Switches (IPS) integrate the logic interface, drivers, diagnostic and protection features of a control section and the power stage for high-side configurations.
