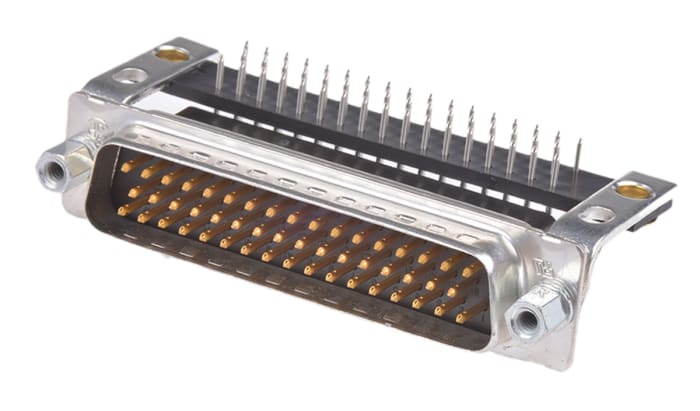

TE Connectivity Amplimite HD-20 50 Way Right Angle Through Hole D-sub Connector Plug, 2.768mm Pitch, with 4-40 UNC,

Nº de Estoque RS: 795-2289Marca: TE ConnectivityPart Number: 5747497-4
brand-logo
Ver tudo em D Sub Connectors

Documentos Técnicos

Especificações

Brand

TE Connectivity

Number Of Contacts

50

Gender

Male

Body Orientation

Right Angle

Mounting Type

Through Hole

Pitch

2.768mm

Termination Method

Solder

Mounting Hardware

4-40 UNC, Female Screw Lock

Housing Material

Thermoplastic

Length

2.635in

Width

0.605in

Depth

1.149in

Series

AMPLIMITE HD-20

Dimensions

2.635 x 0.605 x 1.149in

Contact Plating

Tin over Nickel

Contact Material

Brass

Contact Size

20

País de Origem

Mexico

Detalhes do produto

AMPLIMITE, HD-20 Full Metal-Shell Right-Angle Posted, 545 PCB Mount D-Sub Connectors

AMPLIMITE, HD-20 right-angle posted, 545 (13.84 mm footprint) PCB mount D-sub connectors with a full metal tin plated steel shell. These AMPLIMITE HD-20 PCB mount plug and socket connectors are available with standard mounting screws or 4-40 female screwlocks for connection to mating connectors, 0.00076μm or gold flash on mating contacts (Please refer to datasheet for details). The d-sub plug connectors have grounding indents.

TE Connectivity AMPLIMITE D-Subminiature Connectors
