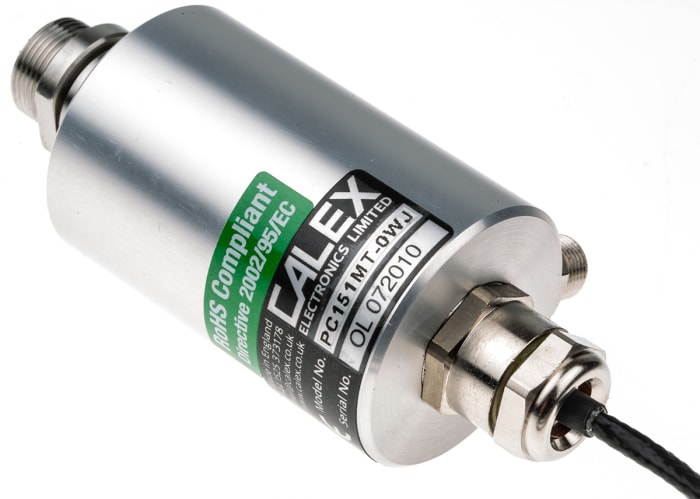

Calex PC151MT-0WJ Infrared Temperature Sensor 1 m, 0 °C to 250 °C
Documentos Técnicos
Especificações
Brand
CalexProduct Type
Infrared Temperature Sensor
Maximum Ambient Temperature
70°C
Accuracy
±1 %
Minimum Temperature Sensed
0°C
Light Source
Infrared
Maximum Temperature Sensed
250°C
Terminal Type
Cable
Maximum Supply Voltage
28V
Diameter
40 mm
IP Rating Sensing Head
IP65
Spectral Range
8 to 14 μm
Cable Length Sensing Head
1m
Cable Length Output
1m
Response Time 90%
240ms
Emissivity Setting
Fixed at 0.95
Housing Material Sensing Head
316 Stainless Steel, Aluminium
Standards/Approvals
Conforms to industrial EMC Standards
Series
PC
País de Origem
United Kingdom
Detalhes do produto
High Performance PyroCouple Series
High quality, low cost, non-contact Infra-red temperature sensors suitable for measuring the temperature of inaccessible or moving objects and materials.
